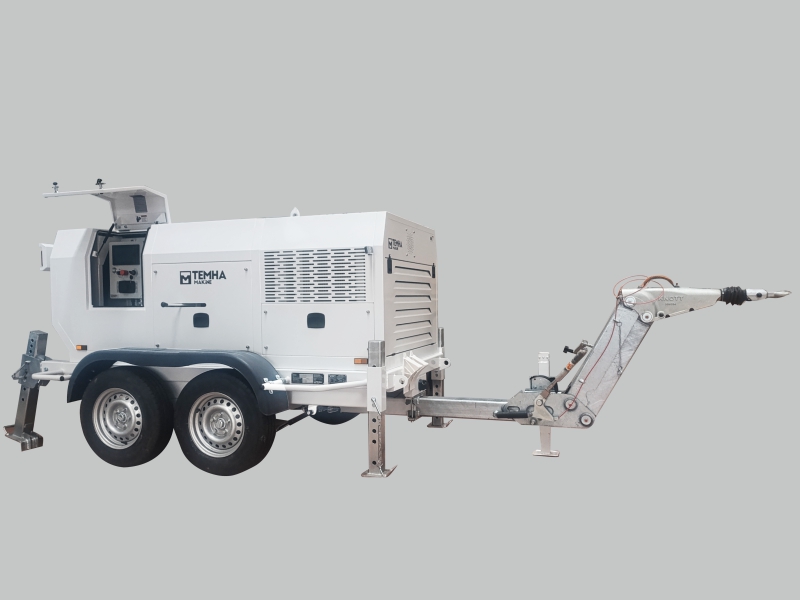

Hydraulic cable pulling machine 5 tons
Technicial Specifications
| Product Code | PM.0105 |
| Pulling Capacity (kN) | 50 kN |
| Pulling speed (m/min) | 0-40 |
| Rope lenght (m) | 1000 |
| Rope diameter (mm) | 12 |
| Working System | Hydraulic |
| Engine | 3-cylinder diesel |
| Engine cooling system | water cooling |
| Chassis | Tandem, torsinal |
| Draw bar | Height adjustable |
| Lenght (mm) | 4700 |
| Width (mm) | 2000 |
| Height (mm) | 1850 |
| Weight (kg) | 3000 |
Double capstan system
Limiting pulling force
Regular winding system
Automatic unwinding
Speed up to 80 km /h with brake and suspension system
Protection against bad weather conditions with closed bonnet
Dismantle cover allows simple maintenance
Order Codes of Optional Devices
| Electronic force limitation, printing, data tracking,usb-sd card recording | 4010AC01 |
| Remote control with 10m of cable | 4010AC02 |
| Radio-Control (max distance 50m) | 4010AC03 |
| Motorised rubber caterpillars | 4010AC04 |
| Telescopic rod to lay underground cables | 4010AC05 |
| Basic | 40105 |
