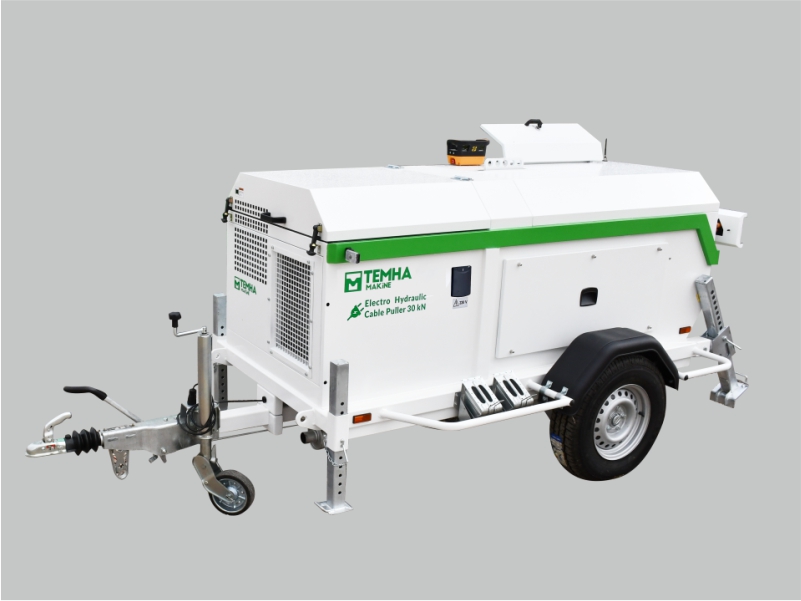

Electro-Hydraulic cable pulling machine 3 tons
Technicial Specifications
| Product Code | EPM.0103 |
| Pulling capacity (kN) | 30 kN |
| Pulling speed(m/dak) | 0-50 |
| Rope length (m) | 1000 |
| Rope diameter (mm) | 10 |
| Working system | Hydraulic |
| Motor (kW) | 10 |
| Working /Charging voltage (V) | 48/220 |
| Chassis | torsinal |
| Draw bar | Overrun brake with fixed height |
| Length (mm) | 3700 |
| Width (mm) | 1923 |
| Heigth (mm) | 1485 |
| Weigth (kg) | 1700 |
Double capstan system
Limiting pulling force
Regular winding system
Automatic unwinding
Speed up to 80 km /h with brake and suspension system
Protection against bad weather conditions with closed bonnet
Dismantle cover allows simple maintenance
Order Codes of Optional Devices
| Electronic force limitation, printing, data tracking,usb-sd card recording | 4010AC01 |
| Remote control with 10m of cable | 4010AC02 |
| Radio-Control (max distance 50m) | 4010AC03 |
| Motorised rubber caterpillars | 4010AC04 |
| Telescopic rod to lay underground cables | 4010AC05 |
| Basic | 40105 |
