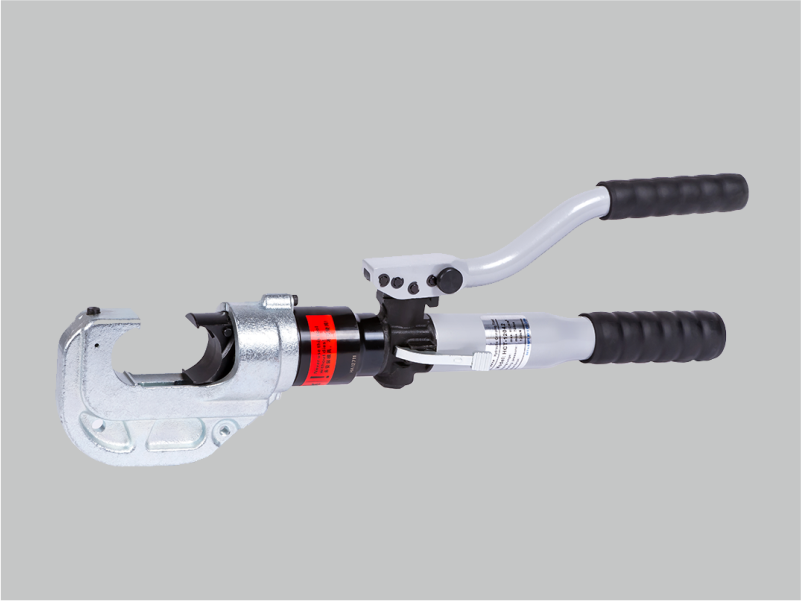

Hand-Operated Hydraulic Crimping Tool
Technicial Specifications
| Production Code | HCT-12042 |
| Crimping Force (kN) | 120 |
| Stroke(mm) | 42 |
| Rated Pressure(bar) | 700 |
| Crimping Capacity(mm2) | Max 400 |
| Net Weight (kg) | 6,1 |
| Standard Dies(mm²) | Cu50-400 |
| Dimensions(cm) | 56*17*7 |
| Package Size(cm) | 67*30*12 |
9*51*145
7*30*126
1. Crimping head rotates 360°
2. Two stage hydraulic, automatic pressure release
3. C-head with 42mm opening width for easy access to the fitting
4. Suitable for crimping cable terminal, C-clamp, connector and overhead line
