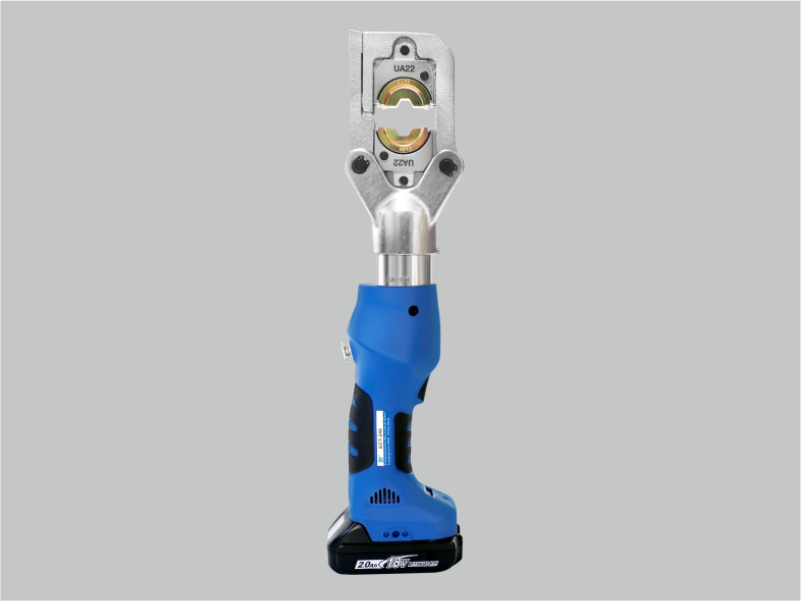

Battery powered mini crimping tool
Technicial Specifications
| Production Code | ECT-240 |
| Crimping Force (kN) | 60 |
| Stroke(mm) | 30 |
| Crimping Capacity(mm2) | Max Cu240mm²/Al185mm² |
| Cutting Range | Max Φ25mm Cu/Al cable, ACSR |
| Oil Reservoir(ml) |
50 |
| Net Weight (kg) | 3,3 |
| Standard Dies(mm²) | Adaptor dies, Cu16-240 , UCACSR&UC40 cutting blade |
| Package(cm) | 59*51*14 |
- Flip top style for easy access to the fittings. Head rotates 360-degree
- Automatic pressure relief and automatic reset
- High performance, high capacity 18V lithium battery with power display, equipped with fast charger
- Built-in intelligent computer chip, OLED display is easy to read information
- Two LED working lights help work easier in dark area
- Housing and carrying case made of PP plastic, integrated forming, resistant to pressure and fall
