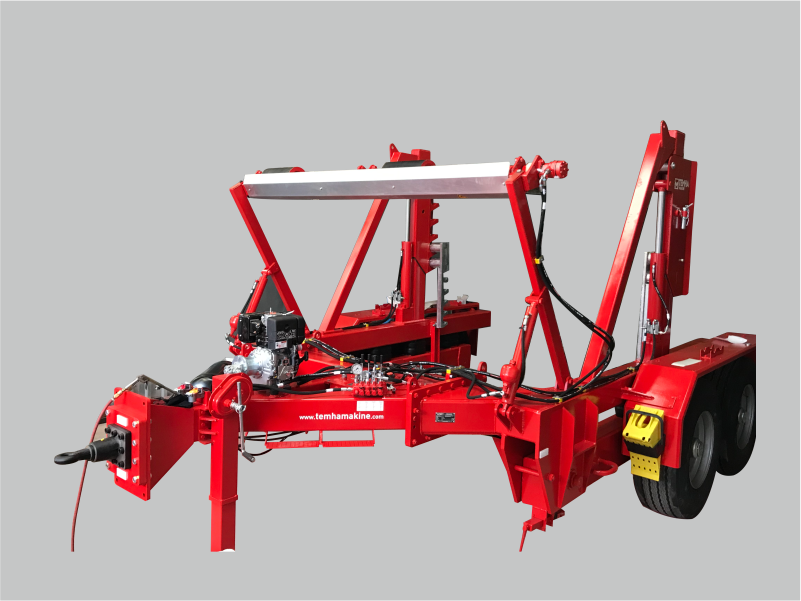

CABLE DRUM TRAILER UP TO 30000 KG
Technicial Specifications
| Product Code | DT.0107 | DT.0108 |
| Payload (kg) | 25000 | 30000 |
| Total weight (kg) | 29900 | 31000 |
| Min.Drum diameter(mm) | 2050 | 2050 |
| Max.Drum diameter (mm) | 4800 | 4800 |
| Loading width (mm) | 2500 | 2500 |
| Spindle diameter-Ø (mm) | 114 | 127 |
| Max.Speed (km/h) | 20 | 20 |
| Length (mm) | 5750 | 5750 |
| Width (mm) | 3780 | 3780 |
| Height (mm) | 3000 | 3000 |
Standart Properties
Central hydraulic hand pump
Hand brake
Height adjustable draw bar
Height adjustable support wheel and prop
Ball bearing drum shaft with drum fixing equipment
Suspension system
| Optional Properties | Order Code |
| Small drum adaptor | 2010AC01 |
| Loading and unloading with engine | 2010AC02 |
| Drum rotator system | 2010AC03 |
| Air brake system | 2010AC05 |
| Ligthning system | 2010AC06 |
