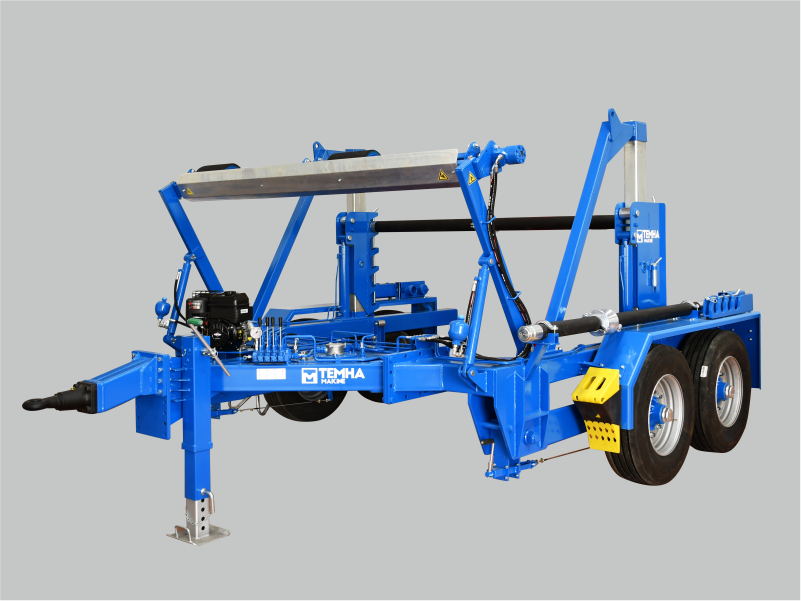

Cable drum trailer up to 20000 kg
Technicial Specifications
| Product code | DT.0105 | DT.0106 |
| Payload (kg) | 15000 | 20000 |
| Total weight (kg) | 18500 | 22800 |
| Min.Drum diameter(mm) | 2200 | 1800 |
| Max.Drum diameter (mm) | 3700 | 4000 |
| Clear loading width (mm) | 2600 | 2100 |
| Drum shaft diameter-Ø (mm) | 90 | 114 |
| Speed limit (km/h) | 20 | 20 |
| Length (mm) | 4800 | 4600 |
| Width (mm) | 3600 | 3100 |
| Heigth (mm) | 2450 | 2280 |
Standart Properties
Central hydraulic hand pump
Hand brake
Height adjustable draw bar
Height adjustable support wheel and prop
Ball bearing drum shaft with drum fixing equipment
Suspension system
| Optional Properties | Order Code |
| Small drum adaptor | 2010AC01 |
| Loading and unloading with engine | 2010AC02 |
| Drum rotator system | 2010AC03 |
| Air brake system | 2010AC05 |
| Ligthning system | 2010AC06 |
