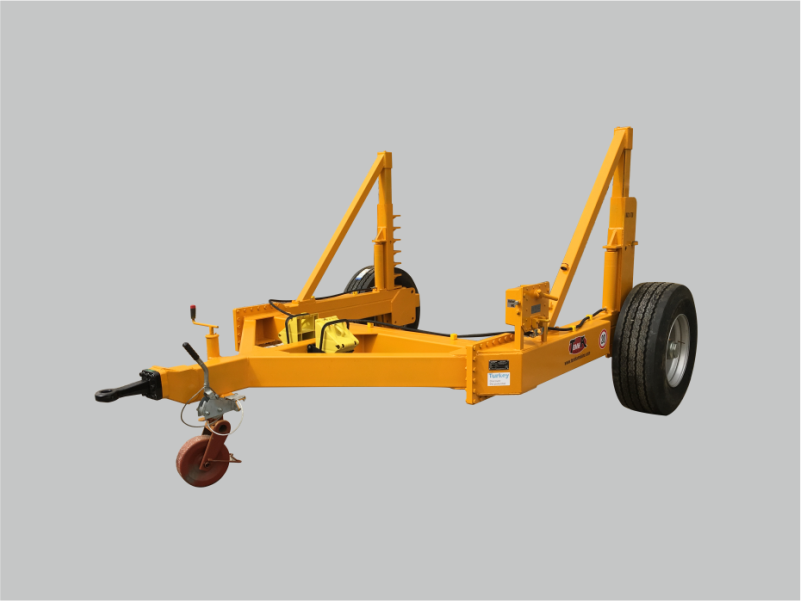

CABLE DRUM TRAILER UP TO 14000 KG
Technicial Specifications
| Product Code | DT.0104 | |||||
| Payload (kg) | 14000 | |||||
| Total weight (kg) | 16000 | |||||
| Empty Weight (kg) | 2000 | |||||
| Min.Drum diameter(mm) | 1900 | |||||
| Max.Drum diameter(mm) | 3600 | |||||
| Clear loading width (mm) | 2300 | |||||
| Drum shaft diameter-Ø (mm) | 90 | |||||
| Max.Speed (km/h) | 20 | |||||
| Length (mm) | 4500 | |||||
| Width (mm) | 2550 | |||||
| Height (mm) | 2000 | |||||
Standard Properties
Solid construction delivery in 3 parts for self-assembly
Easy transportation and strorable
Central hydraulic hand pump
Hand brake
Height adjustable draw bar
Easy and quick loading and unloading by manually
Safety lock
High strength steel structure
Ball bearing drum shaft with drum fixing equipment
