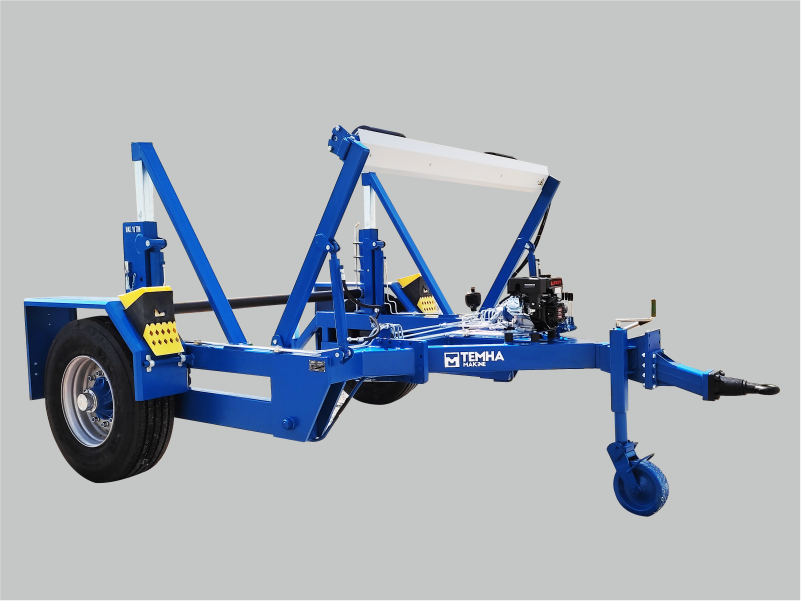

Cable drum trailers up to 10000 kg
Technicial Specifications
| Product Code | DT.0103 |
| Payload (kg) | 10000 |
| Total Weight (kg) | 11400 |
| Max. Drum Diameter (mm) | 3500 |
| Min. Drum Diameter (mm) | 1850 |
| Clear Loading Width (mm) | 1900 |
| Drum shaft diameter-Ø (mm) | 76 |
| Max Speed (km/h) | 20 |
| Length(mm) | 4350 |
| Width (mm) | 3000 |
| Height (mm) | 2250 |
| Draw Bar |
Adjustable Ø50 |
Standard Properties
Central hydraulic hand pump
Hand brake
Height adjustable draw bar
Easy and quick loading and unloading by manually
Safety lock
High strength steel structure
Ball bearing drum shaft with drum fixing equipment
Suspension system
| Optional Properties | Order Codes |
| Small drum adaptor | 2010AC01 |
| Loading and unloading with engine | 2010AC02 |
| Drum rotator system | 2010AC03* |
| Air brake system | 2010AC05 |
| Lightning system | 2010AC06 |
| Cable laying equipment | 2010AC07 |
| * 2010AC03 include 2010AC02 |
