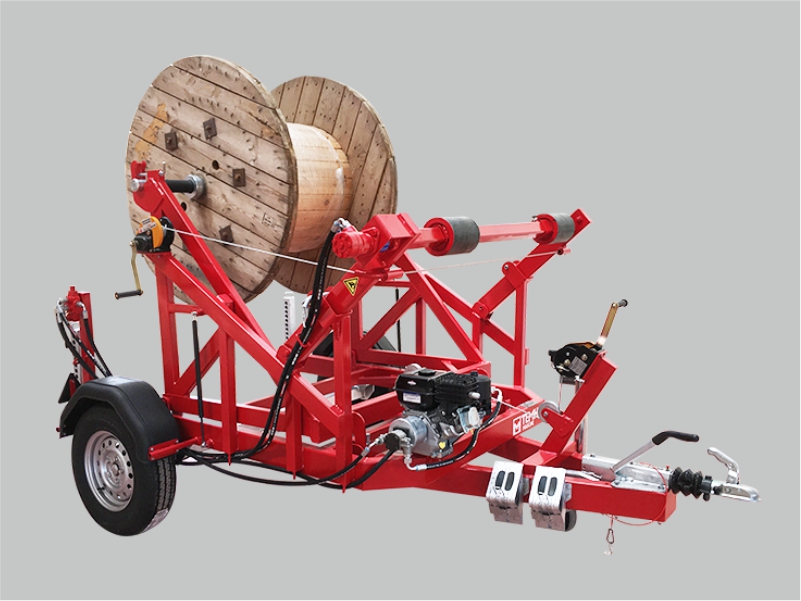

Cable drum trailers up to 2000 kg
Technicial Specifications
| Product code | DT.0301 | DT.0302 |
| Payload (kg) | 1000 | 2000 |
| Total weight (kg) | 1300 | 2550 |
| Drum diameter (mm) | 1100-1950 | 1100-2250 |
| Clear loading width (mm) | 1330 | 1500 |
| Drum shaft diameter-Ø (mm) | 60 | 60 |
| Speed (km/h) | 80 | 80 |
| Length (mm) | 2950 | 3500 |
| Width (mm) | 2000 | 2300 |
| Heigth(mm) | 1400 | 1700 |
Standart Properties
Standart suspension and brake system
Load and unload with hand winch
Ball bearing drum shaft with fixing equipments
Fast and simple installation with one person
High stability
80 km/h speed limit
| Optional Properties | Order Code |
| Drum drive system | 2020AC03 |
| Lightning system | 2020AC06 |
| Tipping container |
2020AC07 |
For the user manual and other instructions, you could contact us at [email protected] and make a request.
