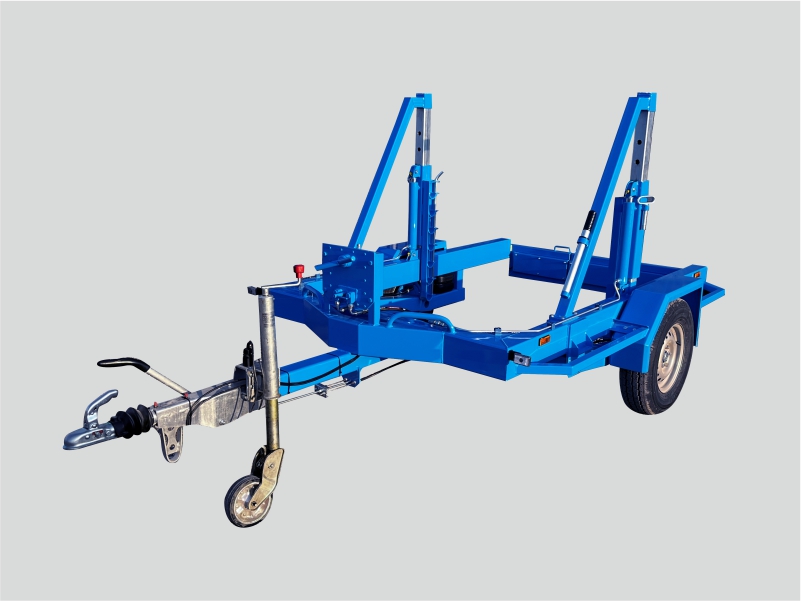

Cable drum trailers up to 1300 kg
Technicial Specifications
| Product code | DT.0303 |
| Payload (kg) | 1300 |
| Total weight (kg) | 1800 |
| Drum diameter (mm) | 800-2300 |
| Clear loading width (mm) | 1250 |
| Drum shaft diameter-Ø (mm) | 60 |
| Speed (km/h) | 120 |
| Length (mm) | 4000 |
| Width (mm) | 2020 |
| Heigth(mm) | 1900 |
Standart Properties
▪ Suspension and brake system
▪ Maintanance free suspension rubbers
▪ Traffic lightning system
▪ Central hydraulic hand pump to lift cable drum
▪ Bearing drum shaft with drum fixing equipment
▪ Easy and safe lifting by a person
▪ Suitable for European road (Type approval certificate)
▪ 80 km/h speed limit
| Optional Properties | Order Code |
| Drum drive system | 2020AC03 |
