Breakaway Point Pulling Adapter

Technicial Specifications

.........................................	Production Code..	...Diameter (mm)...	...Lenght (mm)...	...Max. Tensile Strenght (kg)...

	AC.1301	30	120	1500
	AC.1302	40	140	2500

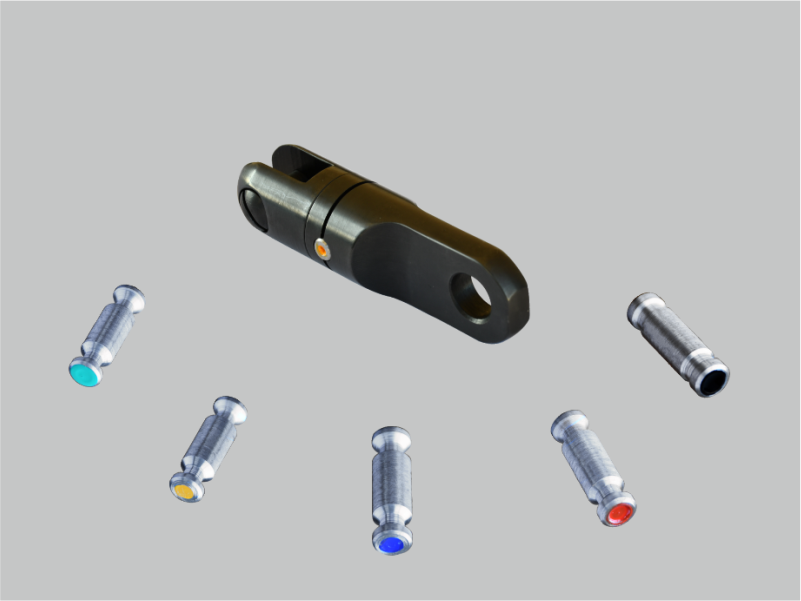

The purpose of this product is to protect the utility being installed from overload. Typically, they would be used during the installation of fiber optic
cable or very small gas ducting where the connector can be preset to breakaway at a predetermined load, thus protecting the fibers or the duct.
The breakaway pins may be changed to allow the same connector or to be used with a variety of different breakaway pins. Changing a pin takes
just seconds.

.................	Group A				Group B
	Product Code	Tensile Strenght (kg)	....Color...	........................	Product Code	Tensile Strenght (kg)	...Color...
	AC.130101	700	Green		AC.130201	1500	Green
	AC.130102	800	Yellow		AC.130202	1800	Yellow
	AC.130103	1000	Blue		AC.130203	2000	Blue
	AC.130104	1300	Red		AC.130204	2300	Red
	AC.130105	1500	Black		AC.130205	2500	Black
